Reliure Allemande: Perfect Binding for Professional Documents

What Is Reliure Allemande?

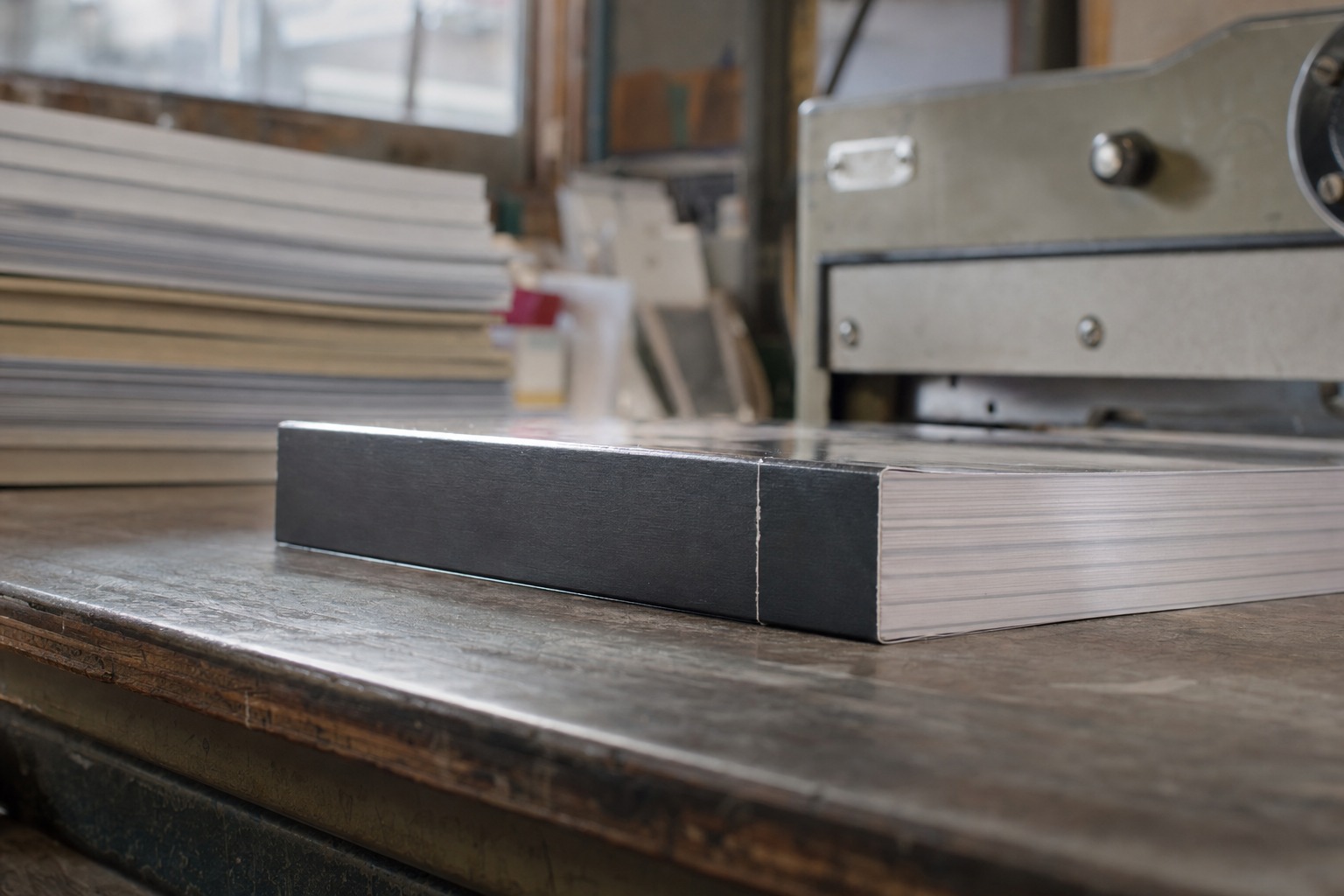

Reliure allemande is a square-spine adhesive binding method, commonly called perfect binding or reliure collée. Printed pages are gathered into a book block, prepared at the spine, and glued into a separate wraparound cover without staples or sewing.

The result is a clean, flat spine similar to those found on paperback books, catalogues, annual reports, and thicker magazines. This paperback-style construction is also described as a couverture souple. The cover, or couverture, typically consists of a back panel, spine, and front panel printed as one piece.

In modern commercial printing, reliure allemande is generally synonymous with dos carré collé or perfect binding. The related term thermoreliure may be used when a heat-activated adhesive secures the book block. The historical term reliure allemande can also refer to older German bookbinding methods, but that is not the meaning normally used for contemporary print orders.

Core Specifications and Production Requirements

A reliure allemande project needs enough spine thickness for the adhesive to hold the pages reliably and for the couverture to wrap around the book block. The practical page minimum and maximum vary by paper thickness, binding equipment, adhesive, and finished size.

Page Count

This binding method is intended primarily for multi-page documents that are too thick for saddle stitching or need a more substantial appearance. Some equipment can technically bind as few as eight pages, but practical minimums are often higher because a very thin spine may not bind consistently.

For example, published production guidance lists minimums of 25 sheets for thin 20 lb paper and 20 sheets for 140 GSM matte paper. These are examples rather than universal standards. Confirm the minimum page count for your chosen paper and printer before preparing final artwork.

Digital printing generally permits page counts divisible by two because pages can be printed sequentially. In conventional offset production, page counts may need to fit signatures divisible by eight or sixteen unless manual assembly is used, as explained in this overview of binding and imposition limits.

Spine Width

Spine width, sometimes labelled épine in French-language production instructions, is calculated from the number of leaves and the paper’s actual caliper, not from page count alone. Two books with the same number of pages can have different spine widths if they use different stocks.

Do not estimate the spine using GSM alone. GSM measures paper weight per square metre, while caliper measures physical thickness. Paper coatings, fibre composition, bulk, and finish can produce different calipers at the same GSM.

The printer should supply the final spine or épine measurement, or a complete cover template, after the interior stock and page count are confirmed.

Finished Size and Bleed

The interior pages are usually supplied at final trim size with bleed added wherever images or colour extend to the edge. This bleed area may be identified as fonds perdus in French artwork instructions. A common allowance is 0.125 in, or approximately 3 mm, but the required value varies by printer.

Keep page numbers, captions, and other critical content away from both the trim and binding edge. Adhesive-bound books do not open completely flat, so content placed close to the gutter can become difficult to read.

Paper, Cover, and Finishing Options

Choose the interior paper for readability and opacity, then select a cover stock that can crease and wrap around the spine without cracking. The best combination depends on page count, intended lifespan, image coverage, and how frequently the publication will be handled.

Interior Paper

Uncoated paper is suitable for manuals, novels, workbooks, and text-heavy reports. It offers a natural surface and generally reduces glare under office lighting.

Coated paper provides sharper image reproduction for catalogues, portfolios, magazines, and product guides. Gloss coatings increase colour vibrancy, while silk or matte coatings create a more restrained appearance.

Heavier paper makes the spine thicker but also makes the pages less flexible. For books that need to open comfortably, avoid choosing stock based on perceived luxury alone. Grain direction, caliper, and the binding system also affect how the finished book behaves.

The selected adhesive must also be compatible with the paper. A traditional colle EVA is a common hot-melt option for commercial binding, while other adhesive systems may be recommended for coated stocks, demanding use, or publications exposed to temperature changes.

Cover Stock

A heavier cover distinguishes the outside of the publication from the pages intérieures and improves handling. C2S stock, meaning coated on two sides, is useful when both the exterior and interior cover surfaces contain printed graphics.

Scoring is usually required before the couverture wraps around the book block. Depending on the equipment, additional hinge scores may be placed beside the spine to help the front and back panels open cleanly.

The cover stock must remain flexible enough to fold at the scores. An excessively heavy or brittle stock can crack along the spine, particularly when dark ink crosses a fold.

Lamination and Special Finishes

Gloss lamination strengthens colour and produces a reflective finish. Matte lamination creates a softer appearance and is better at hiding fingerprints. In French print specifications, lamination may be described as laminage.

Lamination is strongly recommended for covers with large dark areas or heavy solid-colour coverage. Dark ink can show scuffs, scratches, and fingerprints easily, while a laminate film protects the printed surface. Matte laminate is generally the better choice where fingerprint visibility is a concern.

Spot UV can add selective gloss to logos, titles, or images over a matte background. Foil and other decorative finishes may also be possible, but availability and artwork requirements vary by job.

How to Prepare the Artwork

Supply the interior and cover as separate print-ready files, with the couverture built only after the final spine width is known. This prevents incorrect panel positions and spine alignment problems.

Interior File

Export the pages intérieures as single pages in reading order, not printer spreads. Include blank pages where required so that all content remains in the intended sequence.

Use the printer’s requested colour space and image resolution. Embed fonts, preserve bleed, and check that fine lines or small reversed text will reproduce reliably.

Any image or colour intended to reach the trimmed edge must extend through the fonds perdus. Important text and logos should remain inside the printer’s safe area.

Cover File

The cover is normally one flat layout containing the back cover, spine, and front cover. This cover-file guidance specifies a separate cover image containing all three sections.

Extend backgrounds and images through the bleed. A continuous background across the back, spine, and front helps disguise minor production movement. Avoid placing narrow colour changes exactly on spine folds because small variations in folding and binding can make them appear uneven.

Spine text should be centred within the confirmed spine area, with enough clearance from both folds. Very thin books may not have sufficient spine width for readable text.

Every order should be reviewed using the printer’s digital proof, but remember that a digital proof checks content, position, and general colour intent. It does not physically simulate paper texture, binding tension, or exact finished colour.

Best Uses for Reliure Allemande

Reliure allemande is best for professional, multi-page documents that need a printable square spine and a paperback-style finish. It is especially useful where saddle stitching would become bulky or where spine identification matters.

Common applications include:

• Annual reports and corporate reports
• Product catalogues and lookbooks
• Training manuals and instruction books
• Paperback books and self-published titles
• Conference programs
• Academic and scientific publications
• Travel guides
• Portfolios and presentation books
• Thick magazines and journals

The square spine can carry a title, issue number, author, or company name, making publications easier to identify on a shelf. Reliure collée also creates a more formal presentation than stapled saddle stitch.

It is less suitable for notebooks, cookbooks, technical manuals, or music books that must remain open without being held. Wire-O, coil, reliure à spirale, lay-flat adhesive binding, or sewn binding may work better for those uses. A reliure caisse cousue can also provide greater longevity and a more traditional hardcover construction when the budget and intended lifespan justify it.

How to Choose Between Perfect Binding and Saddle Stitch

Choose perfect binding for a square spine, higher page counts, and a paperback-book appearance. Choose saddle stitch for thinner publications that benefit from a lower-cost construction and easier opening.

Saddle stitching folds nested sheets and secures them through the fold with staples. Because folded sheets create four printed pages, its page counts generally work in multiples of four. Thick stocks and high page counts can cause page creep and make the spine resist closing.

Adhesive binding uses separate leaves or gathered sections secured at the spine. It accommodates thicker books, but the binding edge reduces the usable area near the gutter. It also does not naturally lie flat.

Before choosing, compare:

• Total page count
• Interior paper caliper
• Need for spine printing
• Desired opening behaviour
• Expected handling and lifespan
• Cover finishing requirements
• Production quantity and printing method

The quality of the adhesive, spine preparation, paper grain, and stock compatibility all affect durability. Reliure allemande is a production system, not simply a visual finish.

Frequently Asked Questions About Reliure Allemande

Reliure allemande orders depend on the interaction between page count, paper caliper, spine width, cover construction, and adhesive. These answers address the most common decisions buyers face before submitting files.

Is reliure allemande the same as perfect binding?

Yes, in modern commercial printing, reliure allemande usually refers to perfect binding, reliure collée, or dos carré collé. The pages are secured at a square spine with adhesive rather than staples or thread.

What is the minimum page count?

There is no universal minimum. It depends on paper caliper, adhesive, equipment, and finished size. Although very short documents may be technically possible, many printers require a thicker book block for reliable binding.

Can a perfect-bound book lie flat?

Standard adhesive binding does not lie completely flat because the pages are attached along the spine and the cover resists opening. If flat opening is essential, ask about Wire-O, coil, reliure à spirale, sewn, or specialized lay-flat binding.

Can I print text on the spine?

Yes, provided the calculated spine is wide enough to hold readable text with safe clearance from the folds. Wait for the printer’s confirmed spine width before creating the final cover file.

Should I laminate the cover?

Lamination is recommended for publications that will be handled frequently and for covers with dark ink or large solid-colour areas. Gloss laminate increases shine, while matte laminate better conceals fingerprints and provides a subdued finish.

Can interior pages print to the edge?

Yes, but any image or background reaching the trim must extend into the required bleed. Keep important text away from the trim and farther from the binding edge because content close to the gutter may be difficult to see.
